X5 is a great choice to drive Robotic Actuators such as the GIM3505 and GIM3510. The integrated dual absolute angle sensors enable full output position sensing even after power off. With 6A continuous phase current and Field Oriented Control (FOC), it delivers smooth, precise position, velocity, and torque control ideal for robotic actuators and joints . Multiple connectivity options include CAN and UART.

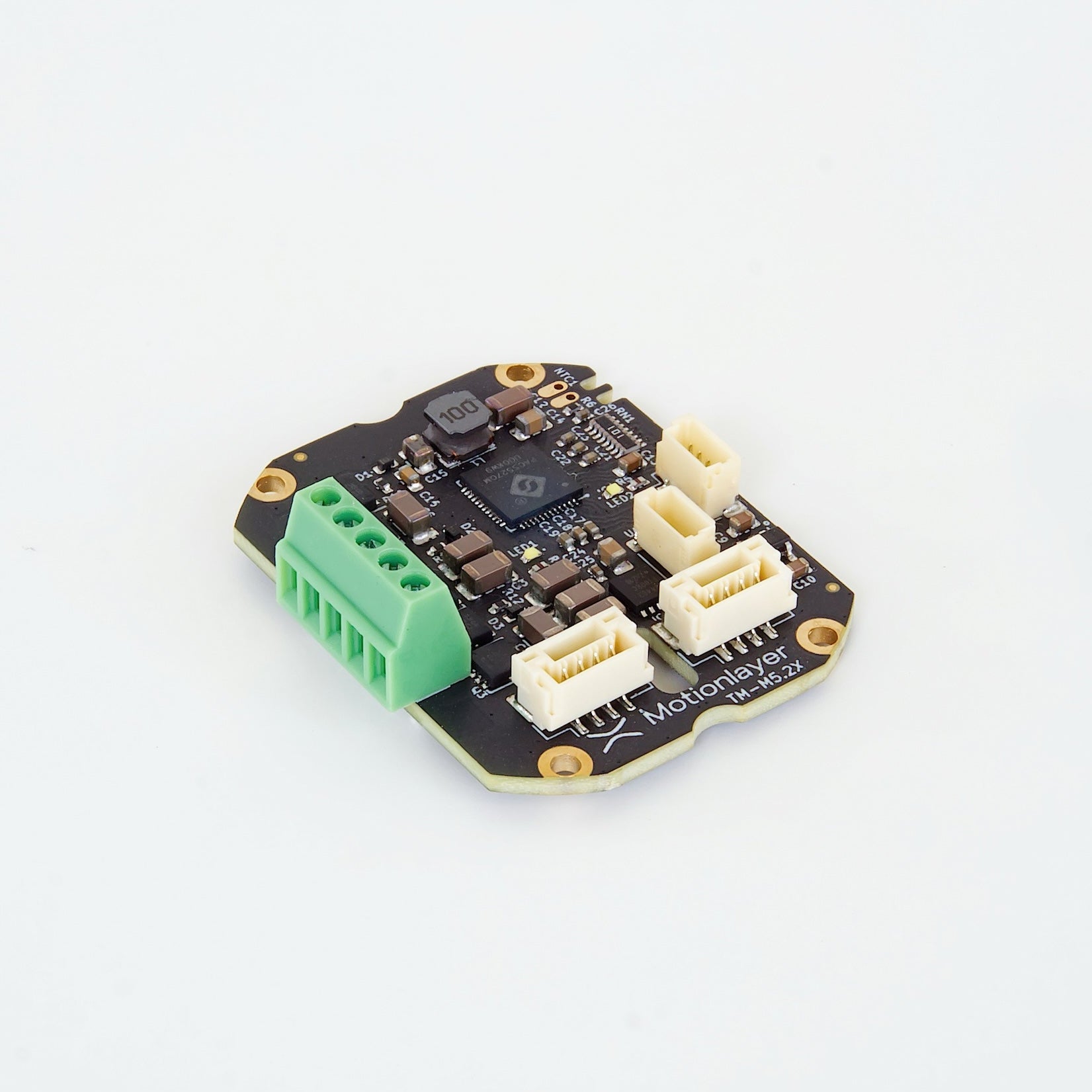

No soldering required! X5 includes compact screw terminals for the motor phases and power supply.

Specs Summary

Input voltage range: 12.0–38.0V

Max Phase Current: 6.0 6A

Connectivity: CAN (2x), UART, and SPI

PCB Dimensions: 38 mm x 30 mm

Weight: 8 g

In the box

Tinymovr M5

Diametrically Magnetized NdFeB magnet

Essential accessories

CANine Adapter (JST-GH)

Wire Pack (JST-GH)

View full details

Ultra Compact & Versatile with Dual Encoder

The X5 Motor Controller is ideal for driving Robotic Actuators with phase current up to 6A, and operating voltage up to 38V.

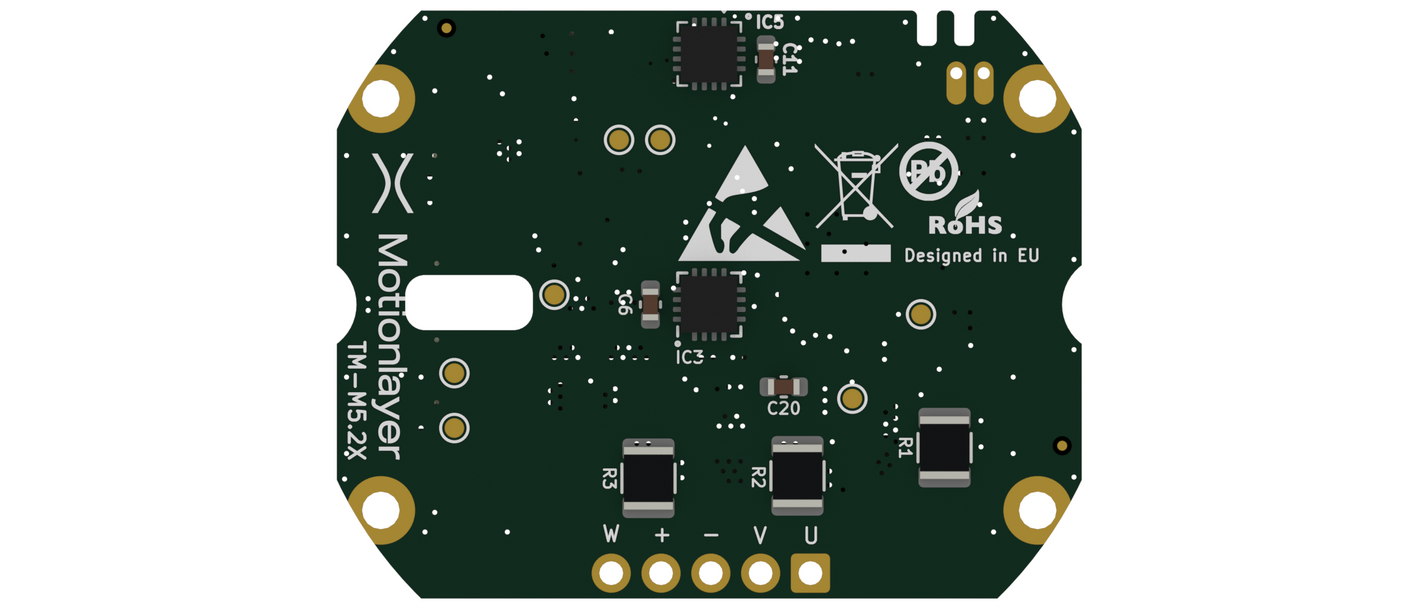

Dual onboard Absolute Angle Sensors means you can derive the angle of the Output Shaft, even after powering off.

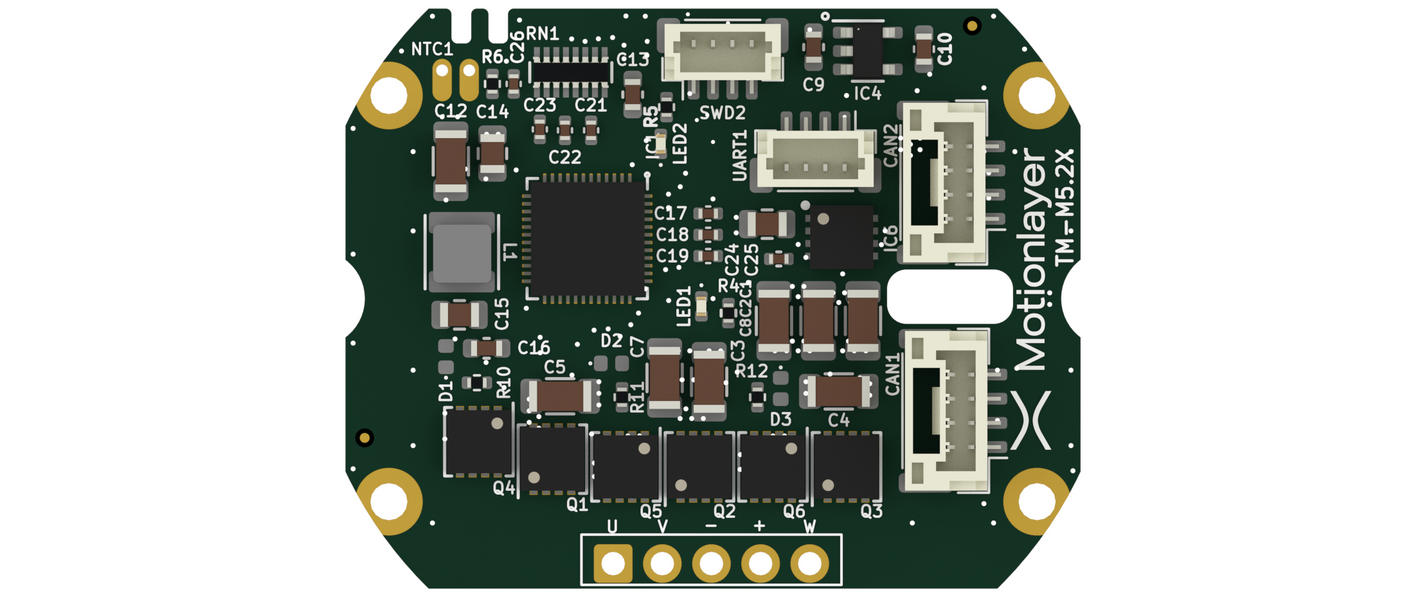

Dual CAN ports means you can daisy-chain the communications from board to board.

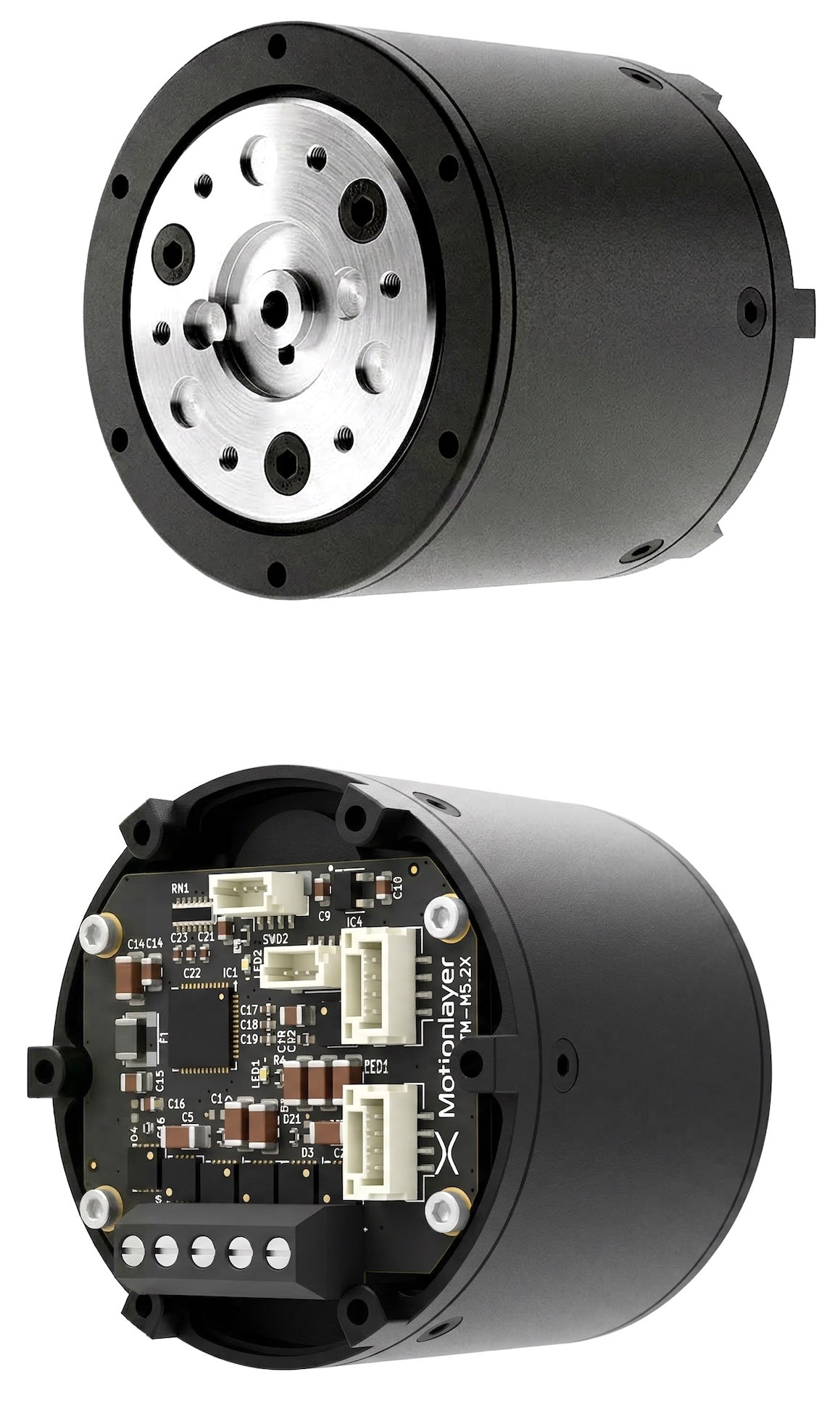

X5 Motor Controller fits the following actuators and more:

  • GIM3505
  • GIM3510
  • GIM35xx

  • FOC Control Core

  • Torque, Velocity, Position and Trajectory Control Modes

  • Dual High Resolution Absolute Angle Sensor

  • Compact 30 mm x 38 mm Footprint

  • Efficiency & Regenerative Operation

  • Automatic Calibration

  • GUI App, C++, Python, ROS & Arduino Libraries

Specs

  • • Input Voltage: 12.0–38.0V

    • Max Continuous Phase Current (depending on cooling): 6.0 A

    • Compatible Motor Internal Resistance: 1.00Ω - 20.00Ω

    • Compatible Motor Internal Inductance: 10μH - 10mH

  • • CAN Bus interface 1Mbps with 2x JST-GH 4-pin sockets for daisy-chaining

    • UART interface with  JST-SH 4-pin socket

    • SWD interface with JST-SH 4-pin socket

    • Idle power 0.5W

  • • Dimensions: 30 mm x 38 mm

    • Weight: 8 g

    • Fully End-of-Line tested
